automa 自动化流程
在 chrome 中安装 automa

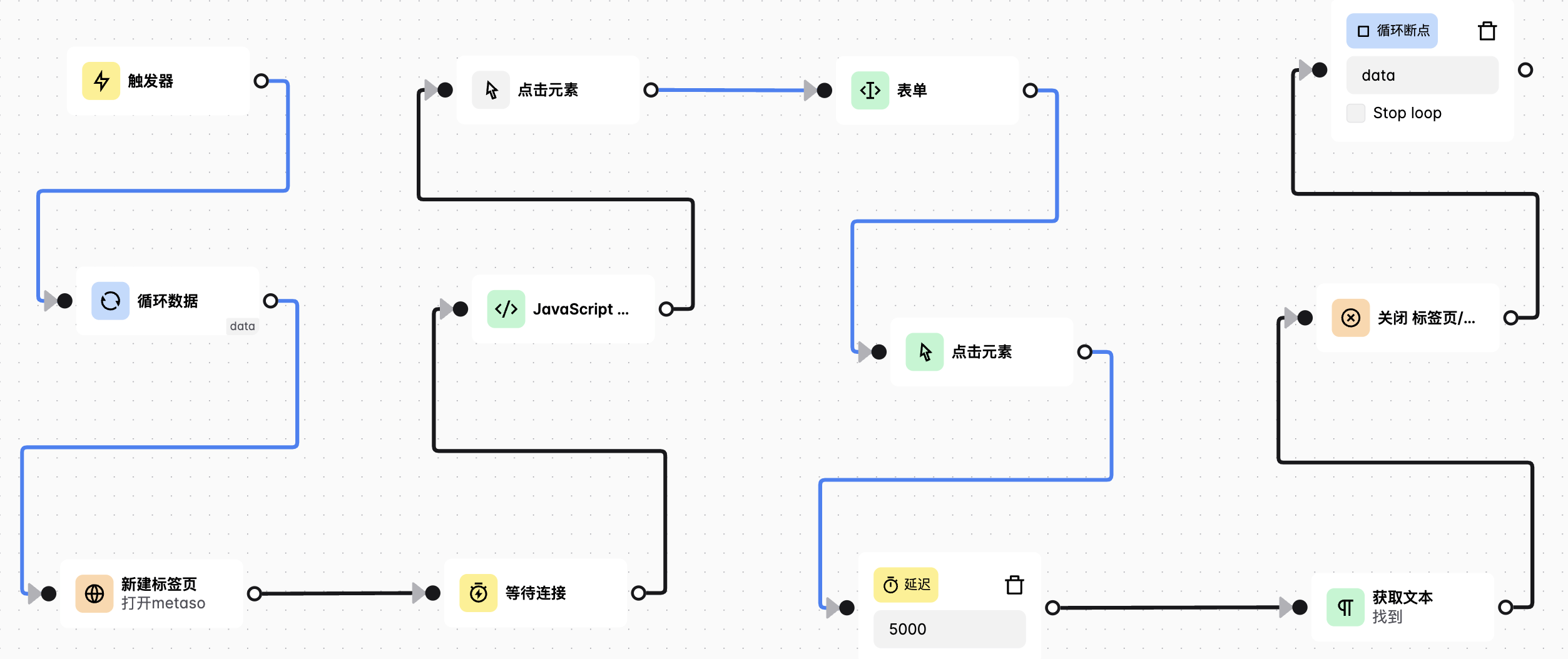

1 整体流程
读取一组数据 -> 打开页面 -> 用javascript读取变量并给变量赋值 -> 点击某一个元素 -> 在表单中输入内容 -> 点击发送 -> 等待一会儿 -> 获取数据并写入表格 -> 关闭标签 -> 进行循环读取下一个数据。
2 循环数据
循环 id 是引用数据集的名字

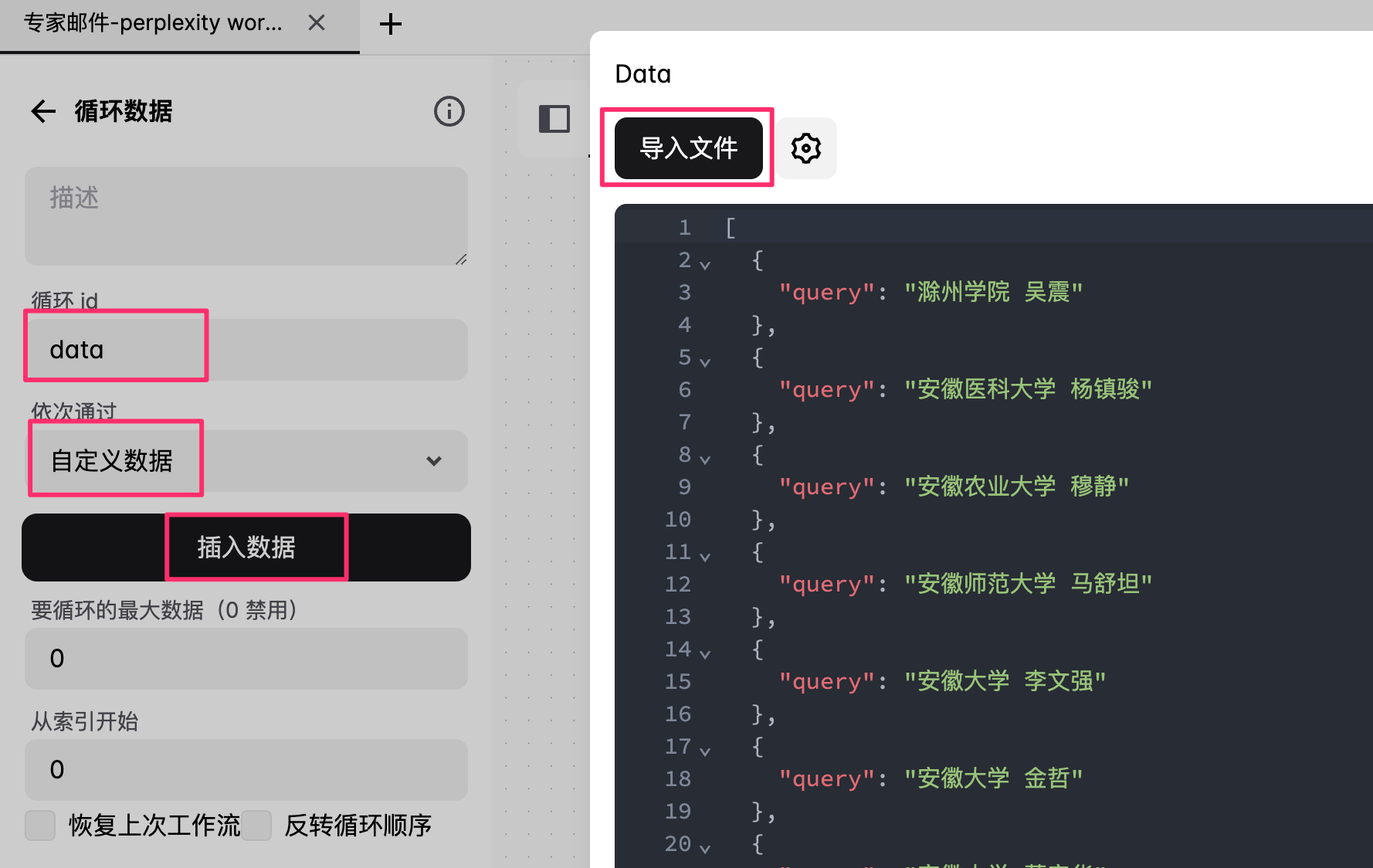

要选择 自定义数据，然后 插入数据 -> 导入文件

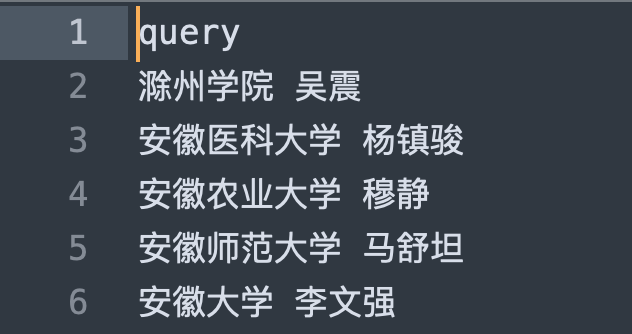

需要导入的数据是 csv 格式的文件，需要代一个表头。例如:

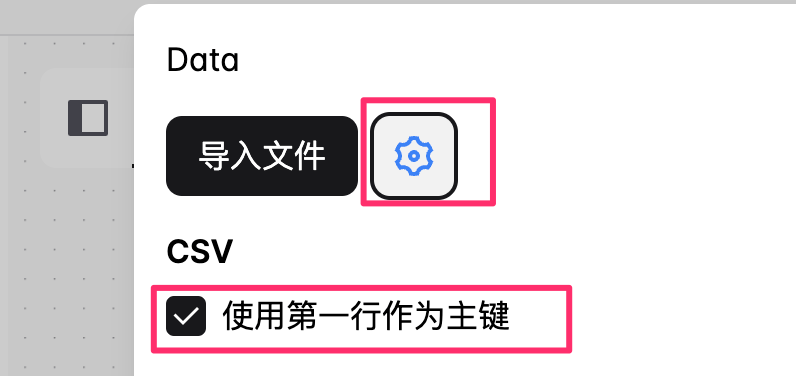

导入前要勾选使用表头做为主键。
3 新建标签页
输入需要打开的链接。

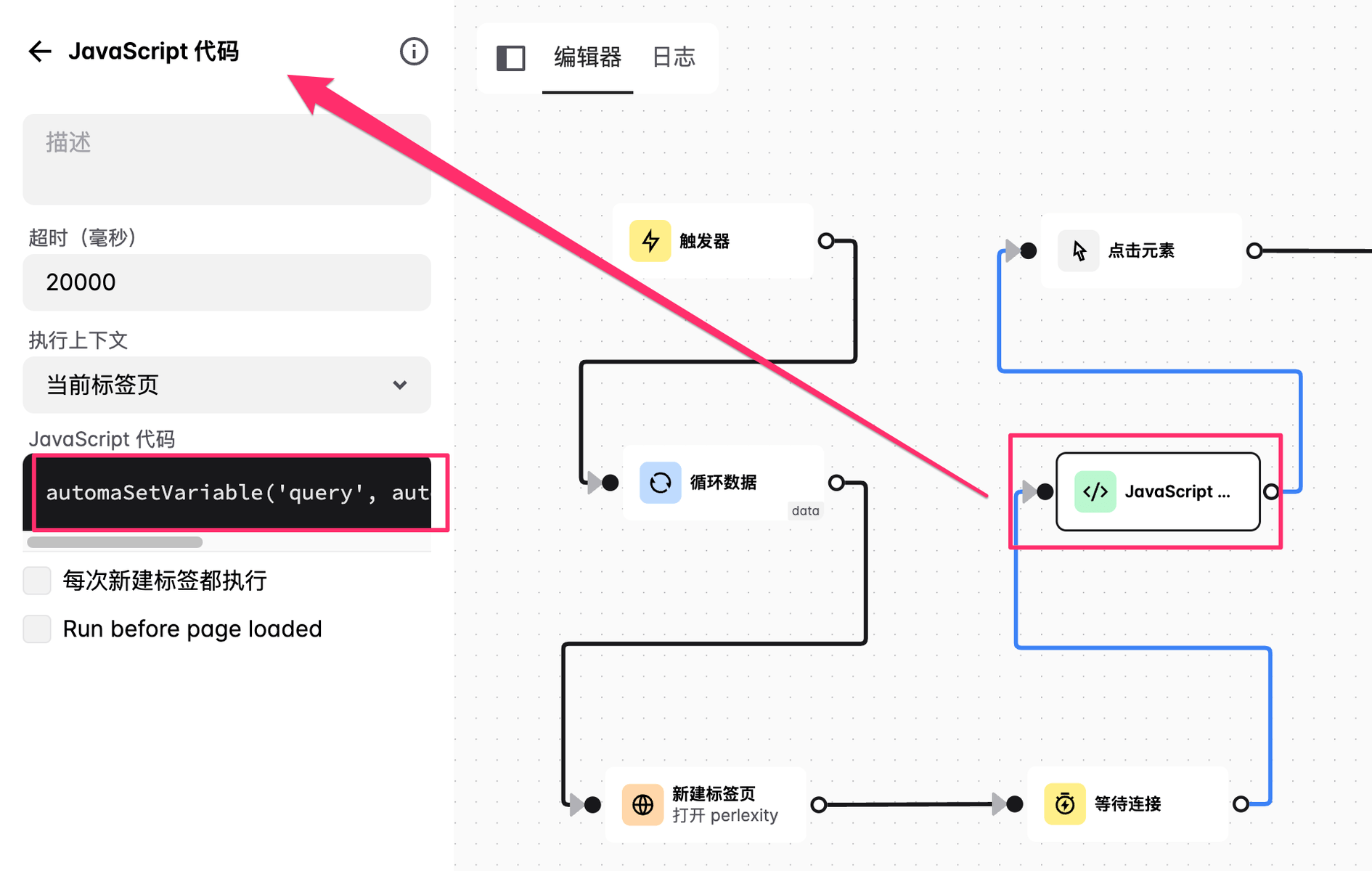

4 Javascript 代码
插入的代码如下：
automaSetVariable('query', automaRefData('loopData', 'data'.query))
相当于每次循环会从loopData开始，然后读取 循环 id 为 data 的数据中的第一个，然后复制给 query 变量。
左边那个query 是复制的变量名。
右侧按个query 是 csv 数据表的表头。

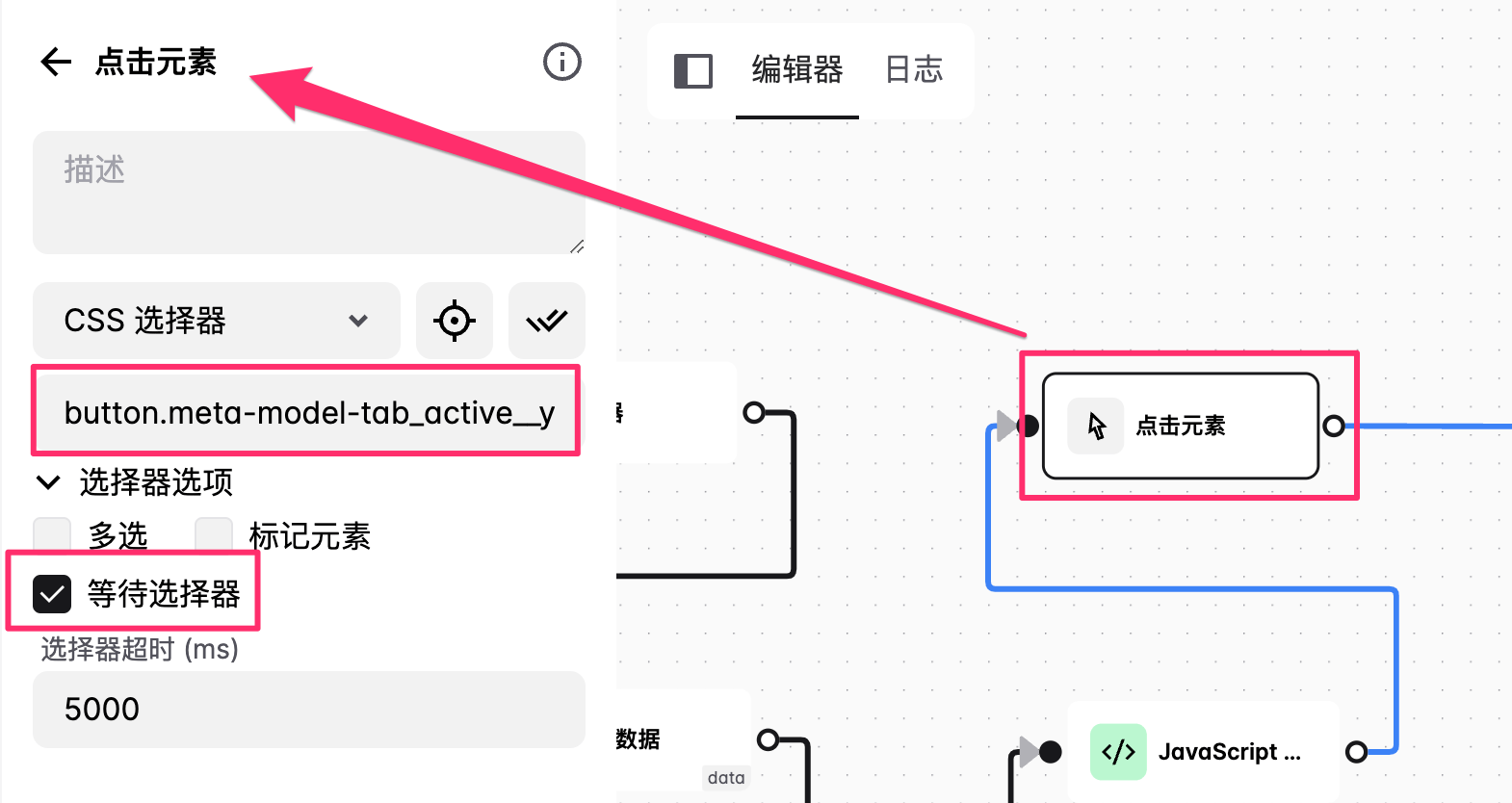

5 点击元素

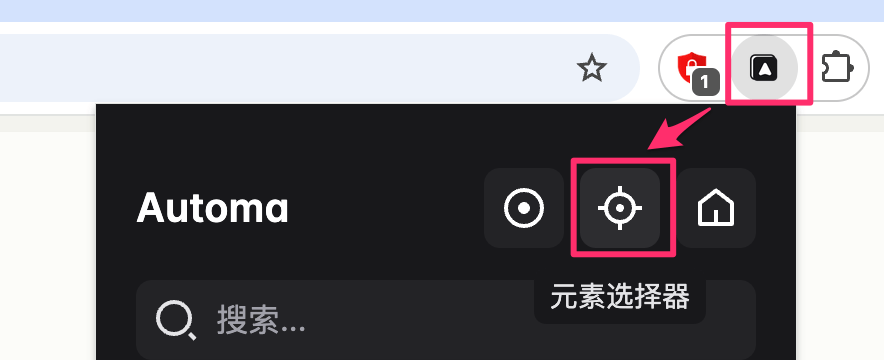

如何获取 css 选择器的值？
先开大要访问的页面。

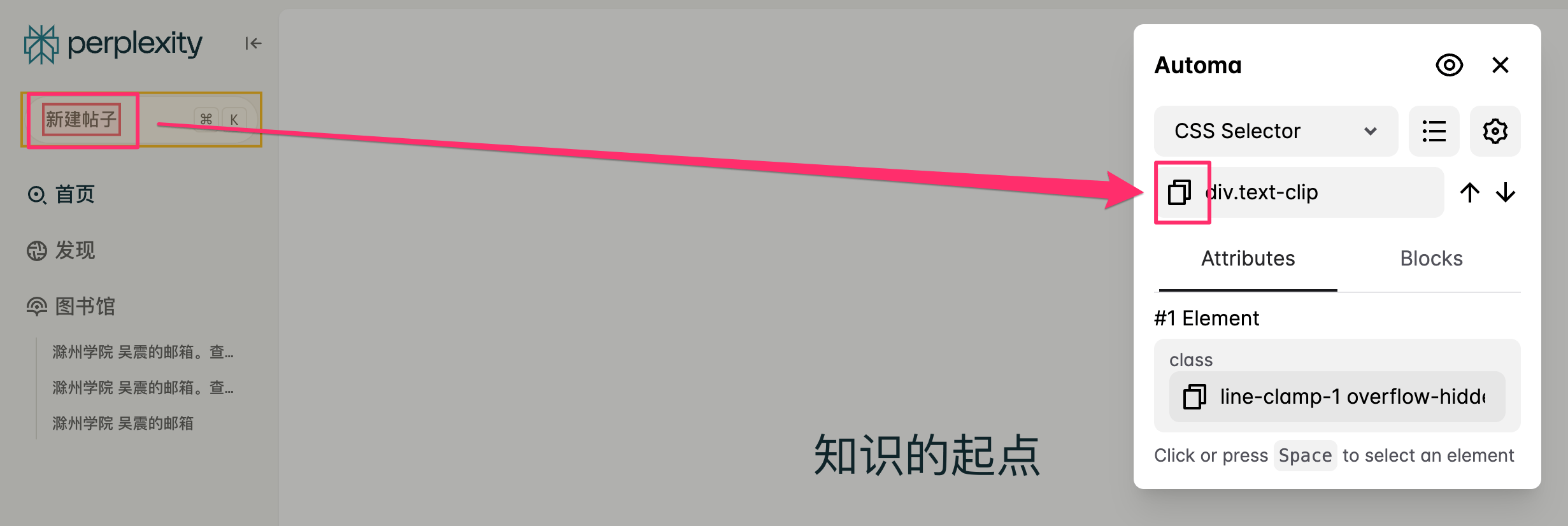

鼠标放到要模拟点击的位置，选择复制图标，复制的内容就是 css 选择器的内容
还一种方法，可以写成 [class="line-clamp-1 overflow-hidden"]

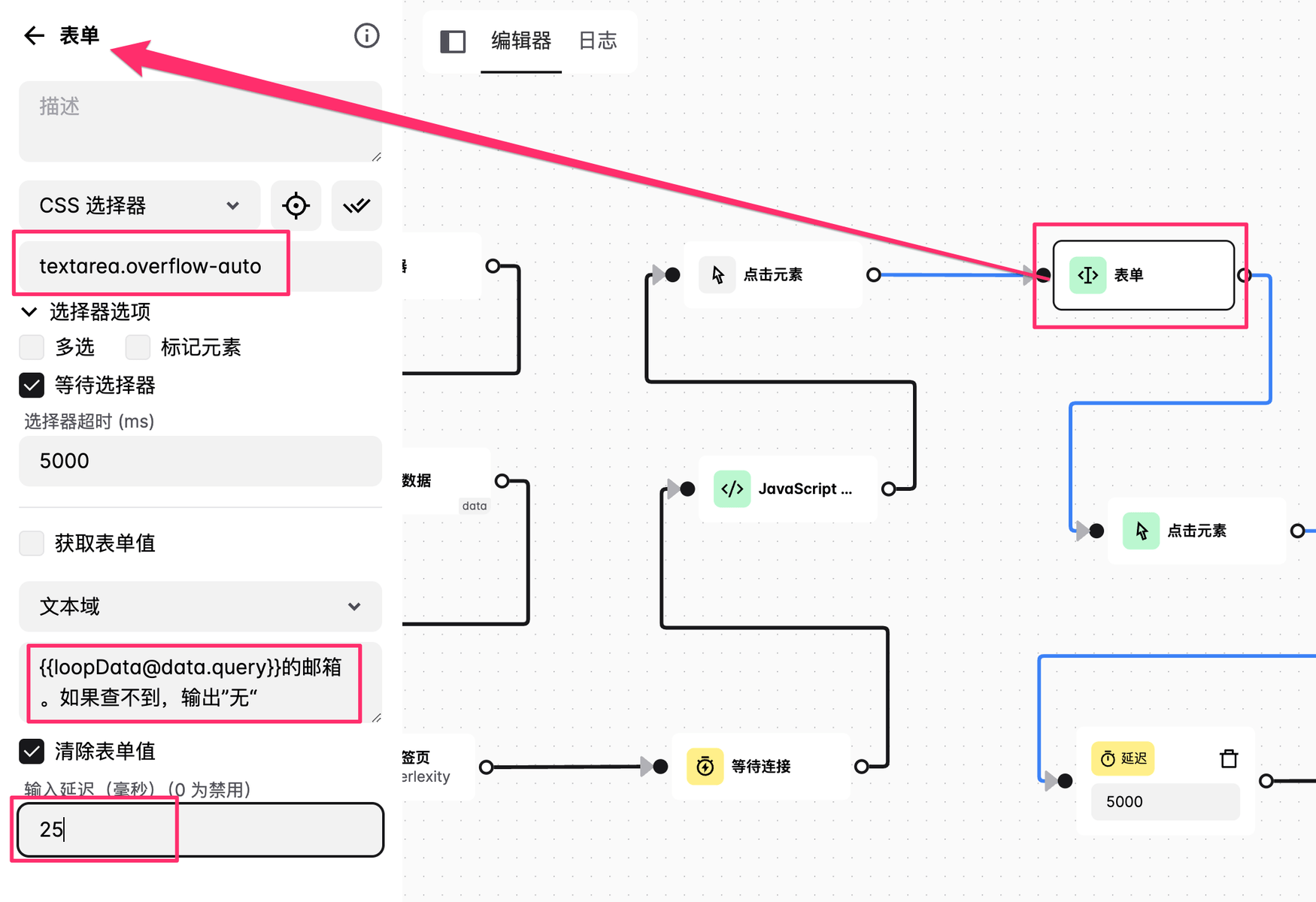

6 表单
表单的功能是模拟键盘输入
css 选择器的值仍然用上一步的方法获取。
文本域：{{loopData@data.query}}就是从 Javascript 代码 中赋值的变量。
loopData 表示是循环数据，data 是循环数据的 循环 id。query是 Juavascript 代码复制的变量名。
7 创建和链接存储表

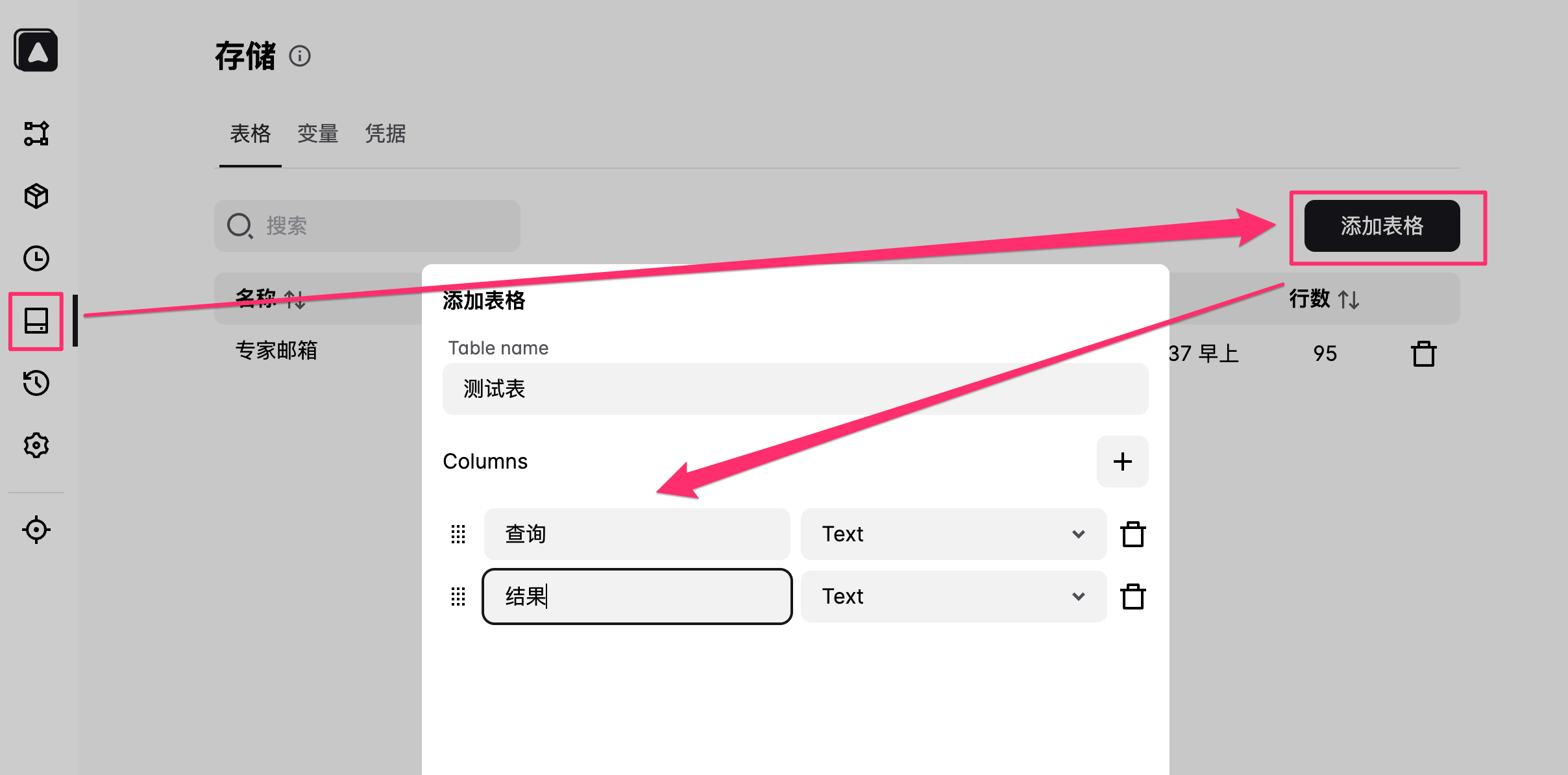

获取文本前需要创建一个存储表，这样才能把获取的文本保存起来。

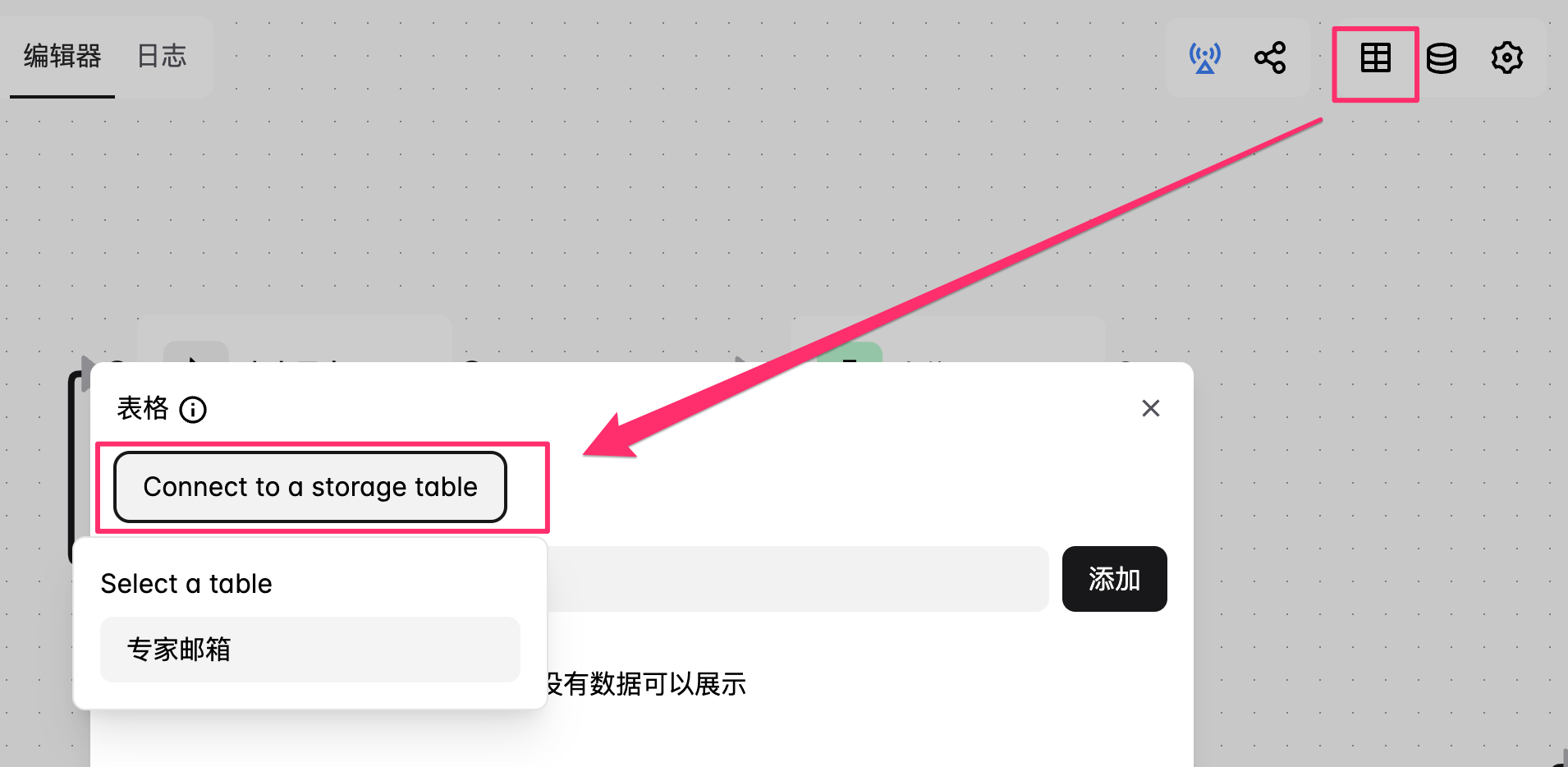

然后需要把流程和存储表链接起来，如下
链接之后如下：

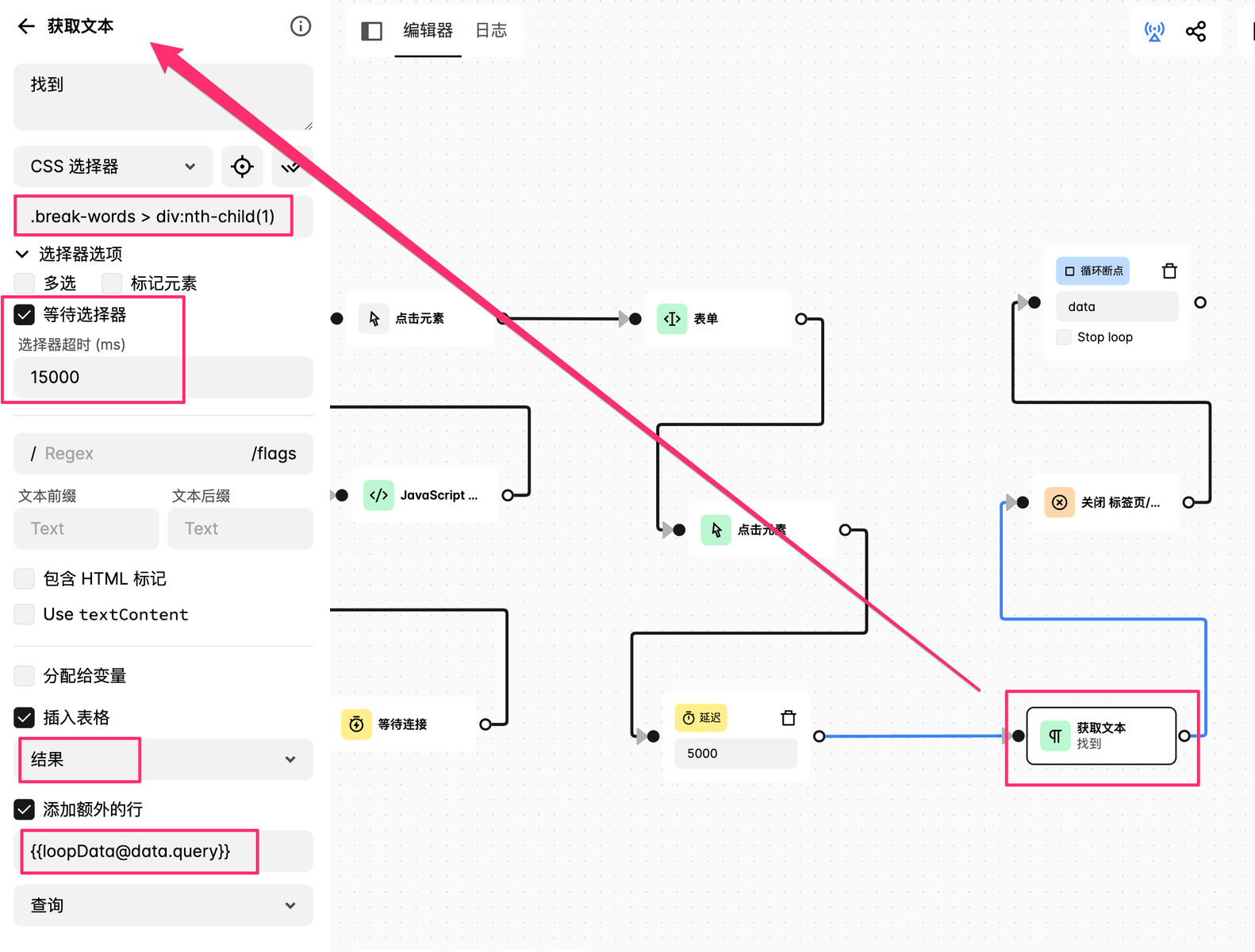

8 获取文本
插入表格，将获取的结果存储表格的结果一列。
为了保存完整的信息，把查询内容 {{loopData@data.query}} 添加到 查询 一列。
万一获取不到文本，需要进行下一个数据的输入和文本的读取，因此。

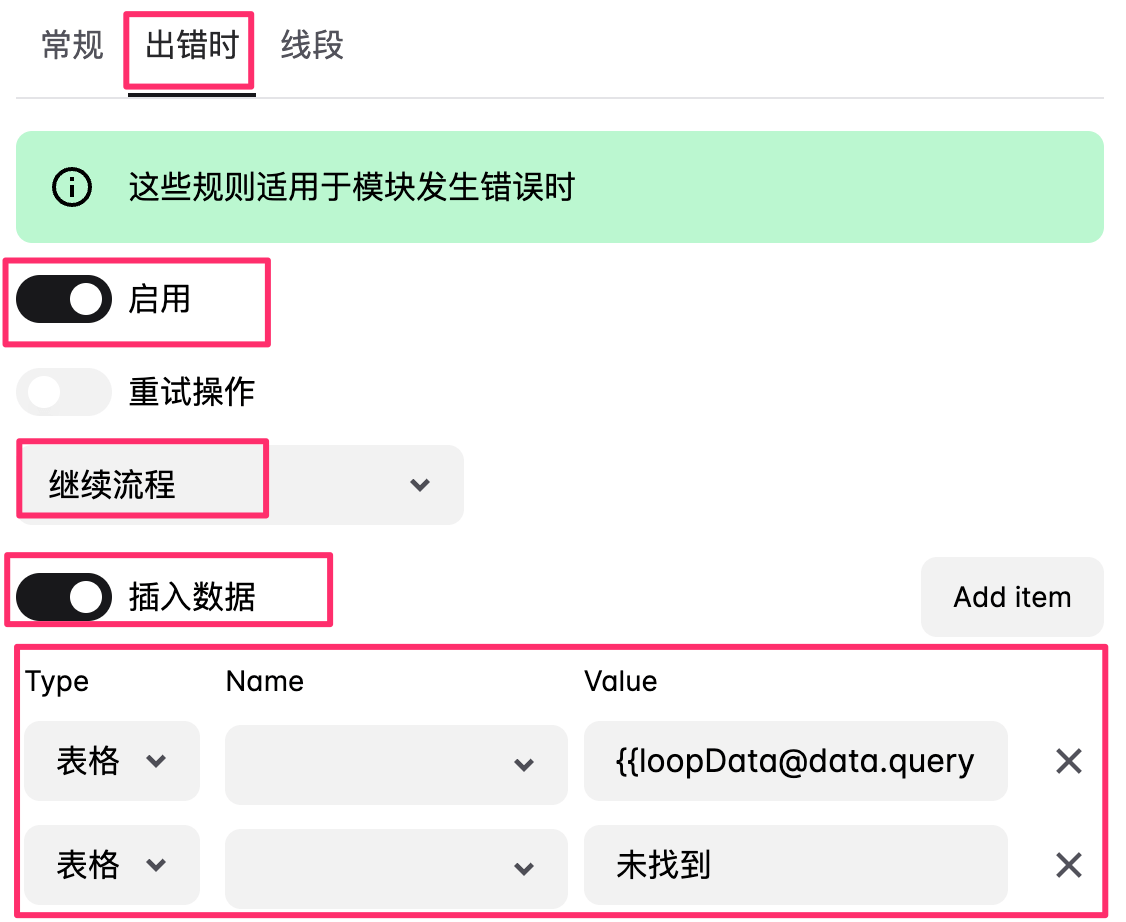

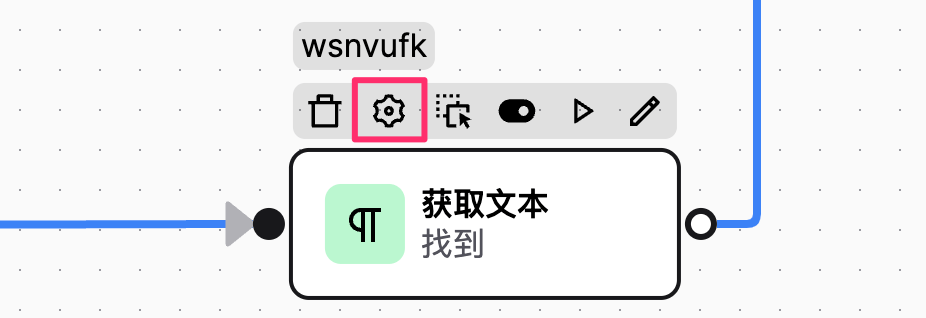

出错时要继续流程，并插入一个 未找到 的数据内容，如下：
9 循环断点

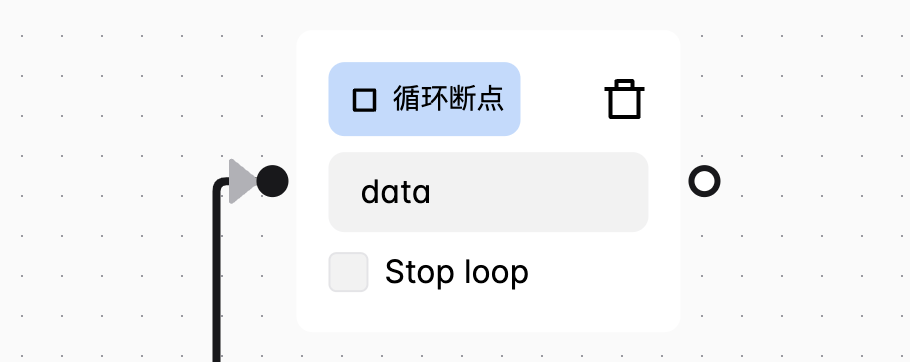

输入循环 data 的名字，执行到这里后，返回 循环数据，开始下一次文本的输入和获取。
10 代码
{
"extVersion": "1.28.27",
"name": "专家邮件-智谱",
"icon": "riGlobalLine",
"table": [],
"version": "1.28.27",
"drawflow": {
"edges": [
{
"data": {},
"events": {},
"id": "vueflow__edge-mty8sl0mty8sl0-output-1-waicb54waicb54-input-1",
"markerEnd": "arrowclosed",
"selectable": true,
"source": "mty8sl0",
"sourceHandle": "mty8sl0-output-1",
"sourceX": 362.42087891230574,
"sourceY": 234.59448328004402,
"target": "waicb54",
"targetHandle": "waicb54-input-1",
"targetX": 517.5421600622034,
"targetY": 234.11291548170394,
"type": "custom",
"updatable": true
},
{
"data": {},
"events": {},
"id": "vueflow__edge-wsnvufkwsnvufk-output-1-exun8syexun8sy-input-1",
"markerEnd": "arrowclosed",
"selectable": true,
"source": "wsnvufk",
"sourceHandle": "wsnvufk-output-1",
"sourceX": 1255.9218817077779,
"sourceY": 761.704868754011,
"target": "exun8sy",
"targetHandle": "exun8sy-input-1",
"targetX": 1008.7775857051201,
"targetY": 486.4435883051458,
"type": "custom",
"updatable": true
},
{
"class": "connected-edges",
"data": {},
"events": {},
"id": "vueflow__edge-e_X-ptgupDKmGelxZGbrfe_X-ptgupDKmGelxZGbrf-output-1-soy582ksoy582k-input-1",
"markerEnd": "arrowclosed",
"selectable": true,
"source": "e_X-ptgupDKmGelxZGbrf",
"sourceHandle": "e_X-ptgupDKmGelxZGbrf-output-1",
"sourceX": -57.65992195906881,
"sourceY": 224.12865700871384,
"target": "soy582k",
"targetHandle": "soy582k-input-1",
"targetX": -279.8403684138105,
"targetY": 454.1386644108445,
"type": "custom",
"updatable": true
},
{
"data": {},
"events": {},
"id": "vueflow__edge-exun8syexun8sy-output-1-5lsy2zi5lsy2zi-input-1",
"markerEnd": "arrowclosed",
"selectable": true,
"source": "exun8sy",
"sourceHandle": "exun8sy-output-1",
"sourceX": 1240.7775857051201,
"sourceY": 486.4435883051458,
"target": "5lsy2zi",
"targetHandle": "5lsy2zi-input-1",
"targetX": 1008.783934804678,
"targetY": 249.7392581644333,
"type": "custom",
"updatable": true
},
{
"class": "connected-edges",
"data": {},
"events": {},
"id": "vueflow__edge-soy582ksoy582k-output-1-860j4gj860j4gj-input-1",
"markerEnd": "arrowclosed",
"selectable": true,
"source": "soy582k",
"sourceHandle": "soy582k-output-1",
"sourceX": -47.840368413810495,
"sourceY": 454.1386644108445,
"target": "860j4gj",
"targetHandle": "860j4gj-input-1",
"targetX": -296.7166874802559,
"targetY": 762.7538928735421,
"type": "custom",
"updatable": true
},
{
"data": {},
"events": {},
"id": "vueflow__edge-860j4gj860j4gj-output-1-ku9d5mhku9d5mh-input-1",
"markerEnd": "arrowclosed",
"selectable": true,
"source": "860j4gj",
"sourceHandle": "860j4gj-output-1",
"sourceX": -64.71668748025593,
"sourceY": 762.7538928735421,
"target": "ku9d5mh",
"targetHandle": "ku9d5mh-input-1",
"targetX": 106.40507940750672,
"targetY": 762.0062053514757,
"type": "custom",
"updatable": true
},
{
"data": {},
"events": {},
"id": "vueflow__edge-ku9d5mhku9d5mh-output-1-iofl7laiofl7la-input-1",
"markerEnd": "arrowclosed",
"selectable": true,
"source": "ku9d5mh",
"sourceHandle": "ku9d5mh-output-1",
"sourceX": 338.4050794075067,
"sourceY": 762.0062053514757,
"target": "iofl7la",
"targetHandle": "iofl7la-input-1",
"targetX": 135.4594602596544,
"targetY": 463.7114128371334,
"type": "custom",
"updatable": true
},
{
"class": "connected-edges",
"data": {},
"events": {},
"id": "vueflow__edge-waicb54waicb54-output-1-nxbpsoenxbpsoe-input-1",
"markerEnd": "arrowclosed",
"selectable": true,
"source": "waicb54",
"sourceHandle": "waicb54-output-1",
"sourceX": 749.5422210973596,
"sourceY": 234.11291548170394,
"target": "nxbpsoe",
"targetHandle": "nxbpsoe-input-1",
"targetX": 552.9435223315021,
"targetY": 503.9544586870801,
"type": "custom",
"updatable": true
},
{
"class": "connected-edges",
"data": {},
"events": {},
"id": "vueflow__edge-nxbpsoenxbpsoe-output-1-48nz4df48nz4df-input-1",
"markerEnd": "arrowclosed",
"selectable": true,
"source": "nxbpsoe",
"sourceHandle": "nxbpsoe-output-1",
"sourceX": 784.9435833666583,
"sourceY": 503.9544586870801,
"target": "48nz4df",
"targetHandle": "48nz4df-input-1",
"targetX": 512,
"targetY": 770.59375,
"type": "custom",
"updatable": true
},
{
"class": "connected-edges",
"data": {},
"events": {},
"id": "vueflow__edge-48nz4df48nz4df-output-1-wsnvufkwsnvufk-input-1",
"markerEnd": "arrowclosed",
"selectable": true,
"source": "48nz4df",
"sourceHandle": "48nz4df-output-1",
"sourceX": 744,
"sourceY": 770.59375,
"target": "wsnvufk",
"targetHandle": "wsnvufk-input-1",
"targetX": 1023.9218817077779,
"targetY": 761.704868754011,
"type": "custom",
"updatable": true
},
{
"data": {},
"events": {},
"id": "vueflow__edge-iofl7laiofl7la-output-1-mty8sl0mty8sl0-input-1",
"markerEnd": "arrowclosed",
"selectable": true,
"source": "iofl7la",
"sourceHandle": "iofl7la-output-1",
"sourceX": 367.4594602596544,
"sourceY": 463.7114128371334,
"target": "mty8sl0",
"targetHandle": "mty8sl0-input-1",
"targetX": 130.42087891230574,
"targetY": 234.59448328004402,
"type": "custom",
"updatable": true
}
],
"nodes": [
{
"data": {
"activeInInput": false,
"contextMenuName": "",
"contextTypes": [],
"date": "",
"days": [],
"delay": 5,
"description": "",
"disableBlock": false,
"interval": 60,
"isUrlRegex": false,
"observeElement": {
"baseElOptions": {
"attributeFilter": [],
"attributes": false,
"characterData": false,
"childList": true,
"subtree": false
},
"baseSelector": "",
"matchPattern": "",
"selector": "",
"targetOptions": {
"attributeFilter": [],
"attributes": false,
"characterData": false,
"childList": true,
"subtree": false
}
},
"parameters": [],
"preferParamsInTab": false,
"settings": {
"blockTimeout": 0,
"debugMode": false
},
"shortcut": "",
"time": "00:00",
"type": "manual",
"url": ""
},
"events": {},
"id": "e_X-ptgupDKmGelxZGbrf",
"label": "trigger",
"position": {
"x": -269.6599219590688,
"y": 188.12865700871384
},
"type": "BlockBasic"
},
{
"data": {
"active": true,
"customUserAgent": false,
"description": "打开metaso",
"disableBlock": false,
"inGroup": false,
"tabZoom": 1,
"updatePrevTab": false,
"url": "https://chatglm.cn/main/gdetail/659e54b1b8006379b4b2abd6?lang=zh",
"userAgent": "",
"waitTabLoaded": false
},
"events": {},
"id": "860j4gj",
"label": "new-tab",
"position": {
"x": -276.7166874802559,
"y": 726.7538928735421
},
"type": "BlockBasic"
},
{
"data": {
"description": "",
"disableBlock": false,
"findBy": "cssSelector",
"markEl": false,
"multiple": false,
"selector": ".input-box-inner > .scroll-display-none",
"waitForSelector": true,
"waitSelectorTimeout": 5000
},
"events": {},
"id": "mty8sl0",
"label": "event-click",
"position": {
"x": 150.42087891230574,
"y": 198.59448328004402
},
"type": "BlockBasic"
},
{
"data": {
"assignVariable": false,
"clearValue": true,
"dataColumn": "",
"delay": "25",
"description": "",
"disableBlock": false,
"events": [],
"findBy": "cssSelector",
"getValue": false,
"markEl": false,
"multiple": false,
"optionPosition": "1",
"saveData": false,
"selectOptionBy": "value",
"selected": true,
"selector": ".input-box-inner > .scroll-display-none",
"type": "text-field",
"value": "{{loopData@data.query}}的邮箱。只输出单行、姓名、邮箱，格式为“单位：xxx，姓名：xxx，邮箱：xxx”。如果查不到，输出“无”。",
"variableName": "",
"waitForSelector": true,
"waitSelectorTimeout": 5000
},
"events": {},
"id": "waicb54",
"label": "forms",
"position": {
"x": 537.5421600622034,
"y": 198.11291548170394
},
"type": "BlockBasic"
},
{
"data": {
"addExtraRow": true,
"assignVariable": false,
"dataColumn": "BQT1a",
"description": "找到",
"disableBlock": false,
"extraRowDataColumn": "1SdjG",
"extraRowValue": "{{loopData@data.query}}",
"findBy": "cssSelector",
"includeTags": false,
"markEl": false,
"multiple": false,
"onError": {
"dataToInsert": [
{
"name": "EaH5U",
"type": "table",
"value": "{{loopData@data.query}}"
},
{
"name": "mgwTG",
"type": "table",
"value": "未找到"
}
],
"enable": true,
"insertData": true,
"retry": false,
"retryInterval": 2,
"retryTimes": 1,
"toDo": "continue"
},
"prefixText": "",
"regex": "",
"regexExp": [],
"saveData": true,
"selector": "[class=\"markdown-body md-body tl\"]",
"settings": {
"blockTimeout": 0,
"debugMode": false
},
"suffixText": "",
"useTextContent": false,
"variableName": "",
"waitForSelector": true,
"waitSelectorTimeout": 5000
},
"events": {},
"id": "wsnvufk",
"label": "get-text",
"position": {
"x": 1043.9218817077779,
"y": 725.704868754011
},
"type": "BlockBasic"
},
{
"data": {
"activeTab": true,
"allWindows": false,
"closeType": "tab",
"description": "",
"disableBlock": false,
"url": ""
},
"events": {},
"id": "exun8sy",
"label": "close-tab",
"position": {
"x": 1028.7775857051201,
"y": 450.4436188227239
},
"type": "BlockBasic"
},
{
"data": {
"description": "",
"disableBlock": false,
"elementSelector": "",
"fromNumber": 1,
"loopData": "[\n {\n \"query\": \"南通大学 于洪爽\"\n }\n }\n]",
"loopId": "data",
"loopThrough": "custom-data",
"maxLoop": "250",
"referenceKey": "",
"resumeLastWorkflow": false,
"reverseLoop": false,
"startIndex": 0,
"toNumber": 10,
"variableName": "",
"waitForSelector": false,
"waitSelectorTimeout": 5000
},
"events": {},
"id": "soy582k",
"label": "loop-data",
"position": {
"x": -259.8403684138105,
"y": 418.1386644108445
},
"type": "BlockBasic"
},
{
"data": {
"code": "automaSetVariable('query', automaRefData('loopData', 'data'.query))",
"context": "website",
"description": "",
"disableBlock": false,
"everyNewTab": false,
"preloadScripts": [],
"runBeforeLoad": false,
"timeout": 20000
},
"events": {},
"id": "iofl7la",
"label": "javascript-code",
"position": {
"x": 155.4594602596544,
"y": 427.7114128371334
},
"type": "BlockBasic"
},
{
"data": {
"clearLoop": false,
"disableBlock": false,
"loopId": "data"
},
"events": {},
"id": "5lsy2zi",
"label": "loop-breakpoint",
"position": {
"x": 1028.783934804678,
"y": 174.1455081644333
},
"type": "BlockLoopBreakpoint"
},
{
"data": {
"description": "",
"disableBlock": false,
"flowBlockId": "",
"specificFlow": false,
"timeout": 10000
},
"events": {},
"id": "ku9d5mh",
"label": "wait-connections",
"position": {
"x": 126.40507940750672,
"y": 726.0062053514757
},
"type": "BlockBasic"
},
{
"data": {
"description": "",
"disableBlock": false,
"findBy": "cssSelector",
"markEl": false,
"multiple": false,
"selector": "img.enter_icon",
"waitForSelector": true,
"waitSelectorTimeout": 5000
},
"events": {},
"id": "nxbpsoe",
"label": "event-click",
"position": {
"x": 572.9435223315021,
"y": 467.9544892046582
},
"type": "BlockBasic"
},
{
"data": {
"disableBlock": false,
"time": "35000"
},
"events": {},
"id": "48nz4df",
"label": "delay",
"position": {
"x": 532,
"y": 712
},
"type": "BlockDelay"
}
],
"position": [
496,
79
],
"viewport": {
"x": 496,
"y": 79,
"zoom": 1
},
"zoom": 1
},
"settings": {
"blockDelay": 0,
"debugMode": false,
"defaultColumnName": "column",
"execContext": "popup",
"executedBlockOnWeb": false,
"inputAutocomplete": true,
"insertDefaultColumn": false,
"notification": true,
"onError": "stop-workflow",
"publicId": "",
"restartTimes": 3,
"reuseLastState": false,
"saveLog": true,
"tabLoadTimeout": 30000
},
"globalData": "{\n\t\"key\": \"value\"\n}",
"description": "",
"includedWorkflows": {}
}
